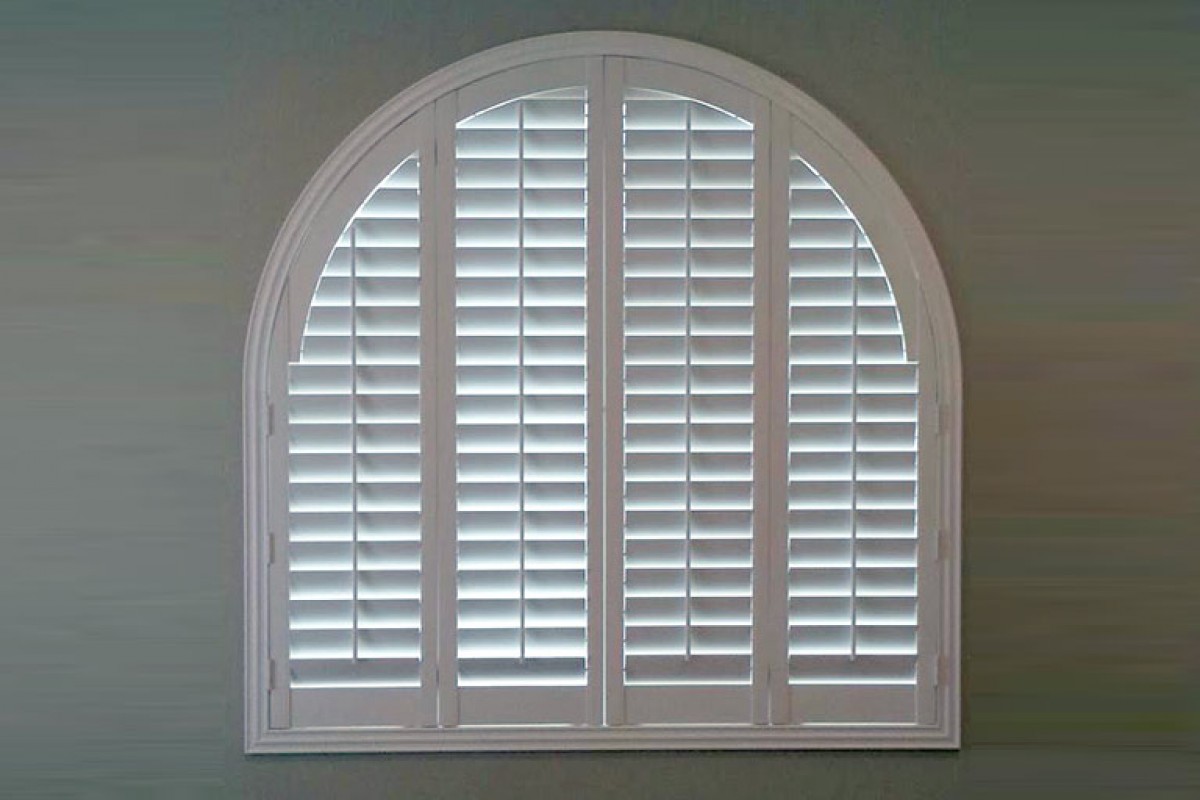

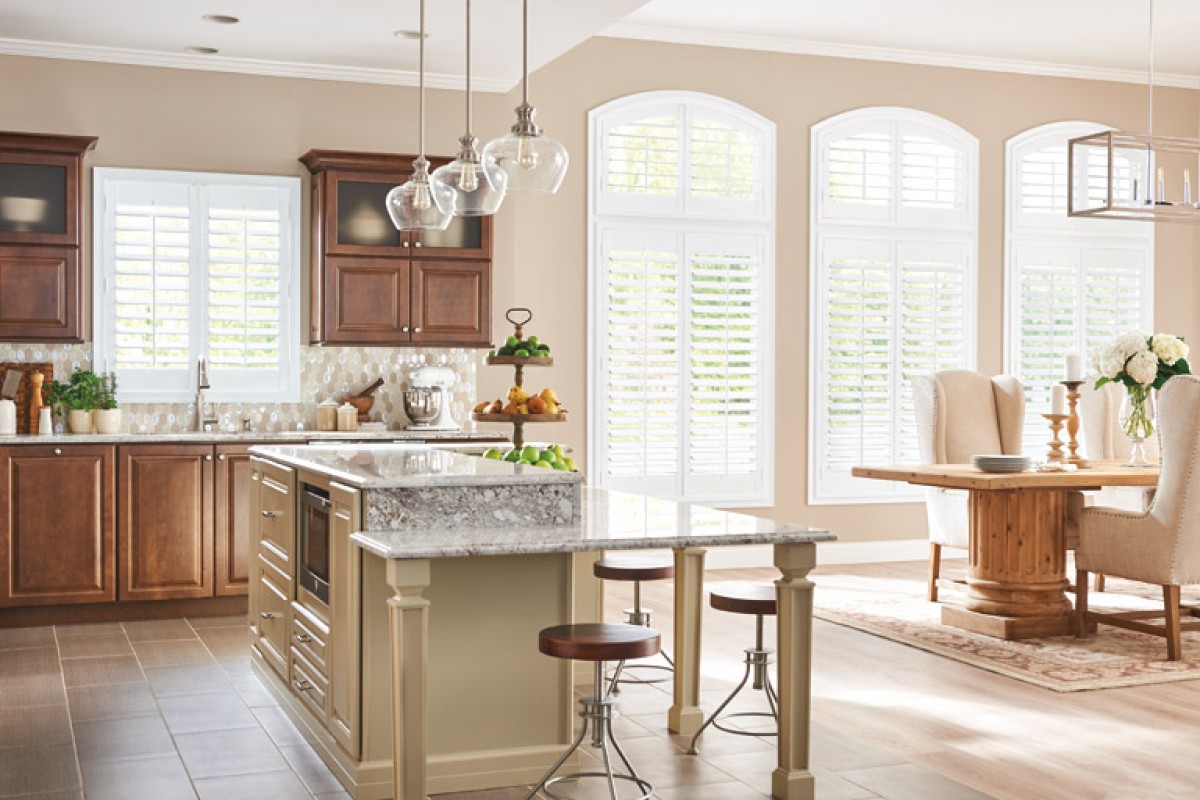

Premium Louvered Arched Poly Shutter

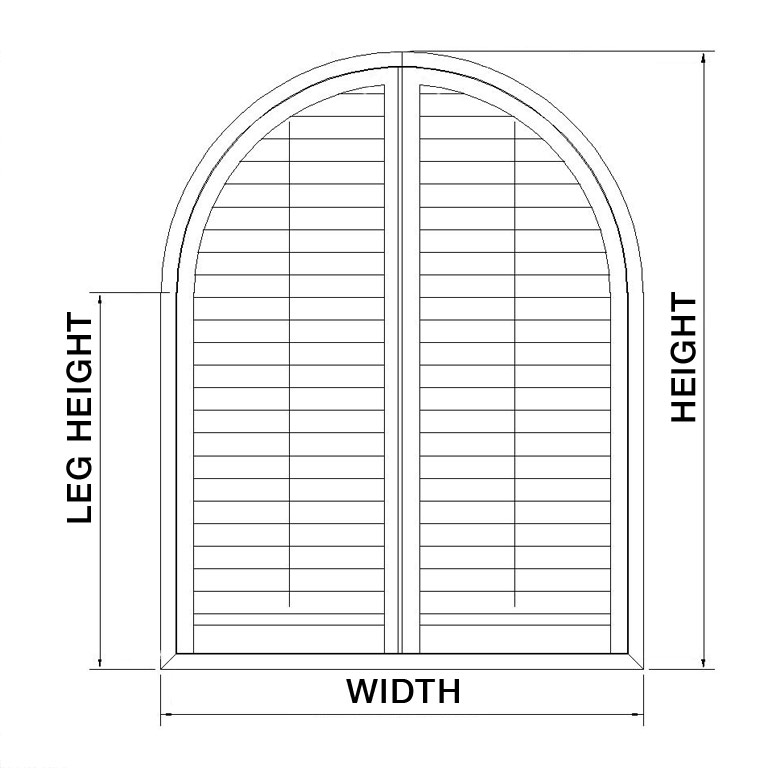

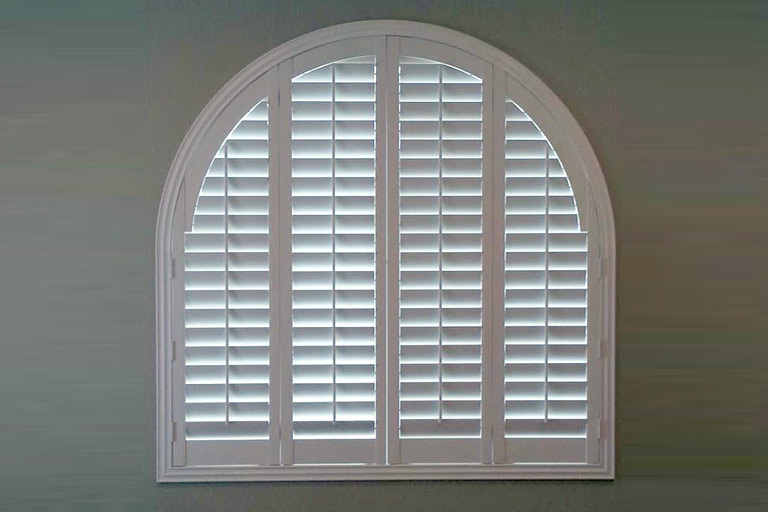

The top of your window looks like a half circle. The leg height is the point at which your window starts to curve, We will email you a drawing to approve all sizes prior to production.

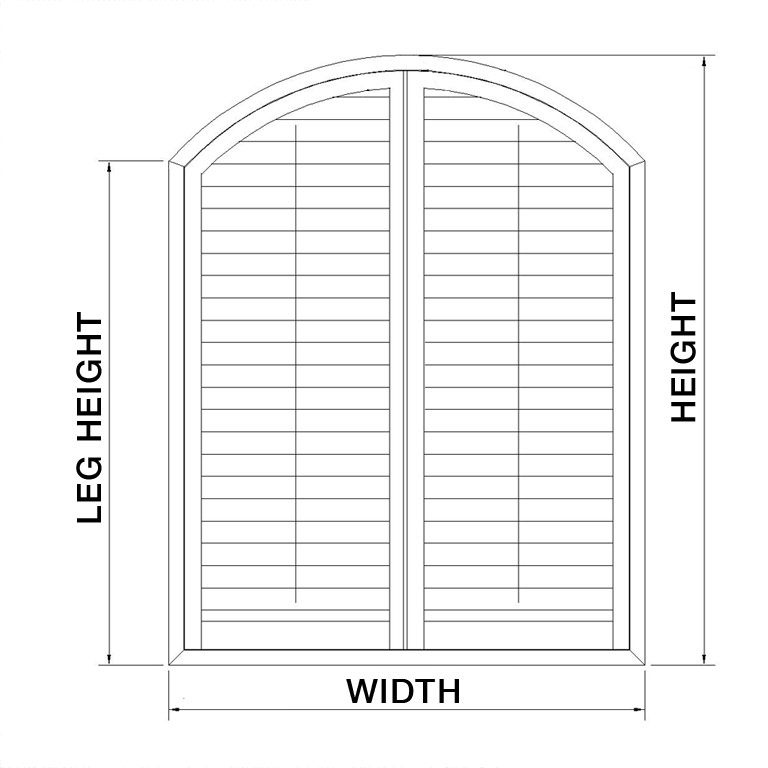

The top of your window has a slight curve to the arch. The leg height is the point at which your window starts to curve. We will email you a drawing to approve all sizes prior to production.

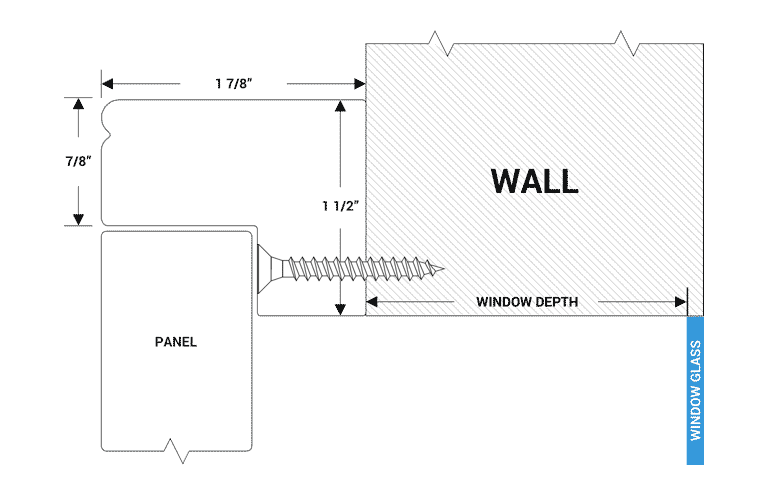

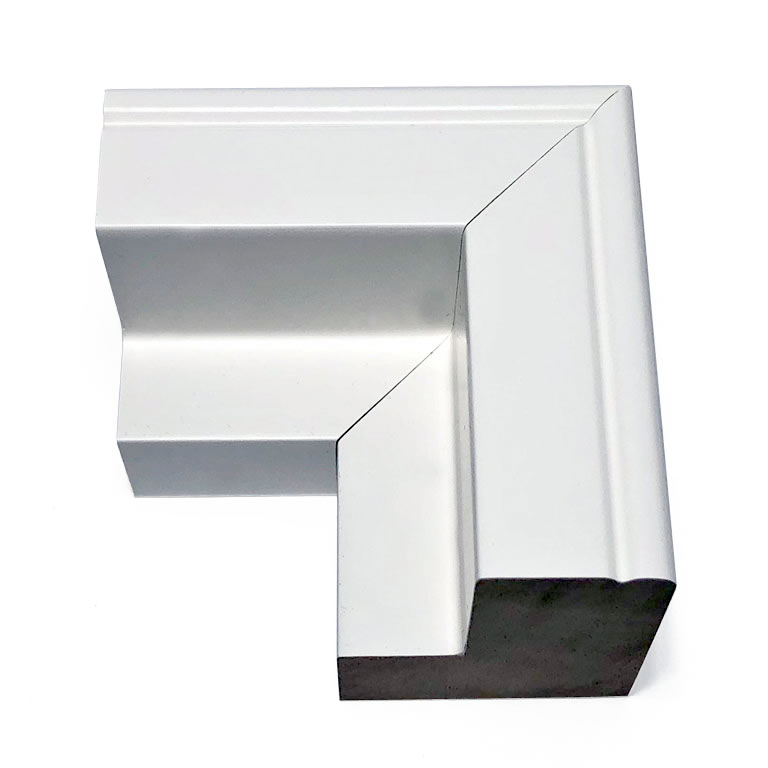

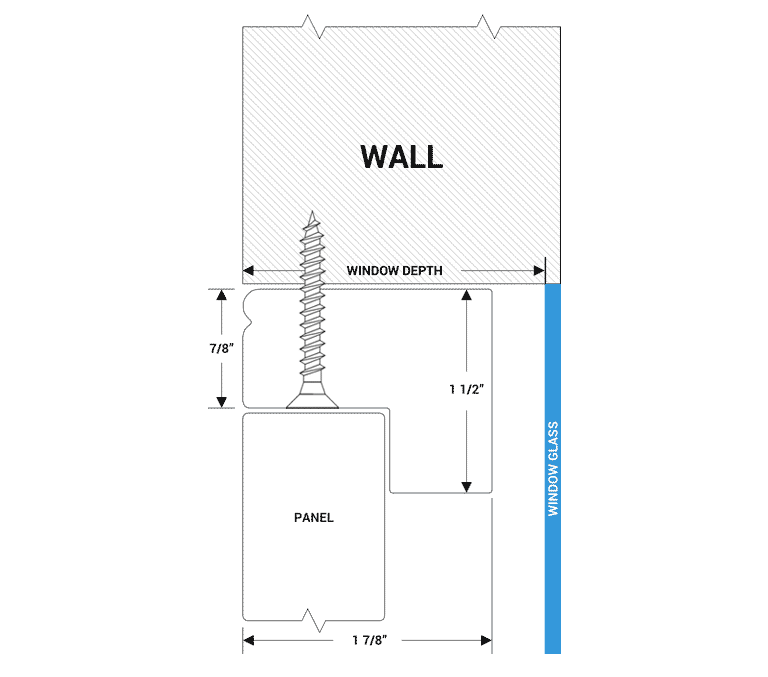

When ordering an outside mount shutter you need to add overlap to your window opening to mount your shutter. For the Beaded L Frame the recommended overlap is 2" per side. Example if your opening is 30" W x 40" H we recommend ordering your shutter 34" W x 44" H. Do not add overlap to the bottom if you have a window sill that your shutter will rest on.

When ordering an inside mount shutter you need to take a deduction to allow your shutter to fit inside your opening. We suggest 1/4" minimum for proper clearance. You must include this deduction in the width & height you order your shutter at. Example if your opening is 30" W x 40" H you would need to order no larger than 29 3/4" W x 39 3/4" H. More of a deduction may be needed depending on the squareness of your window.

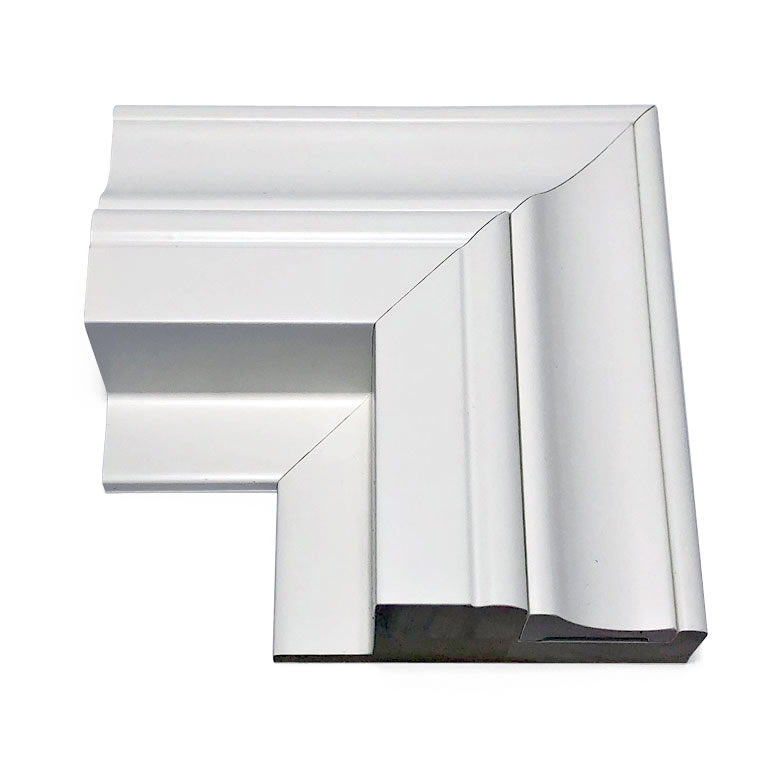

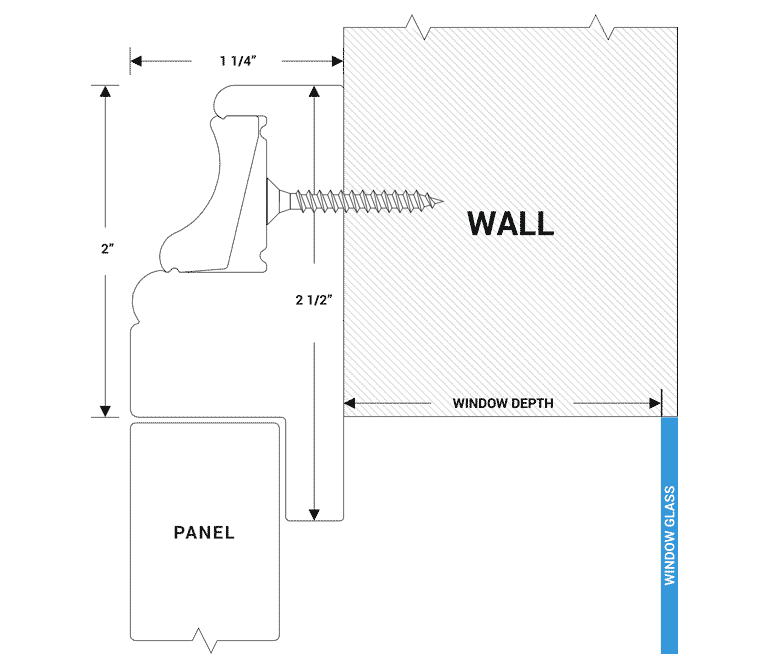

Frame has a unique insert section that snaps in to cover nail or screw holes. No filling of holes needed. When ordering an outside mount shutter you need to add overlap to your window opening to mount your shutter. For the 2" Decorative Frame the recommended overlap is 2" per side. Example if your opening is 30" W x 40" H we recommend ordering your shutter 34" W x 44" H. Do not add overlap to the bottom if you have a window sill that your shutter will rest on. Note: Arched shutter frames will be made as a solid frame not with an insert section. Available outside mount only.

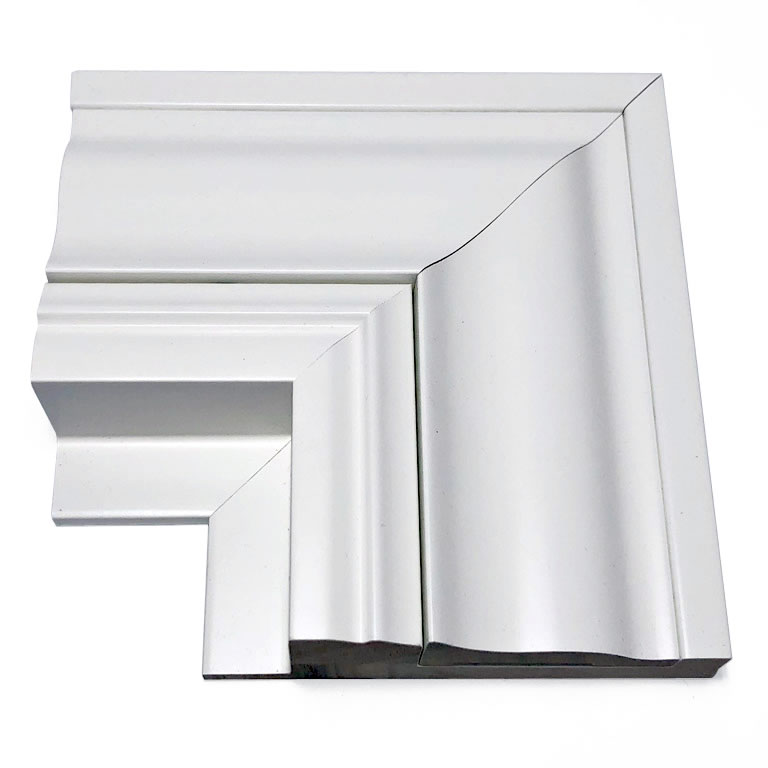

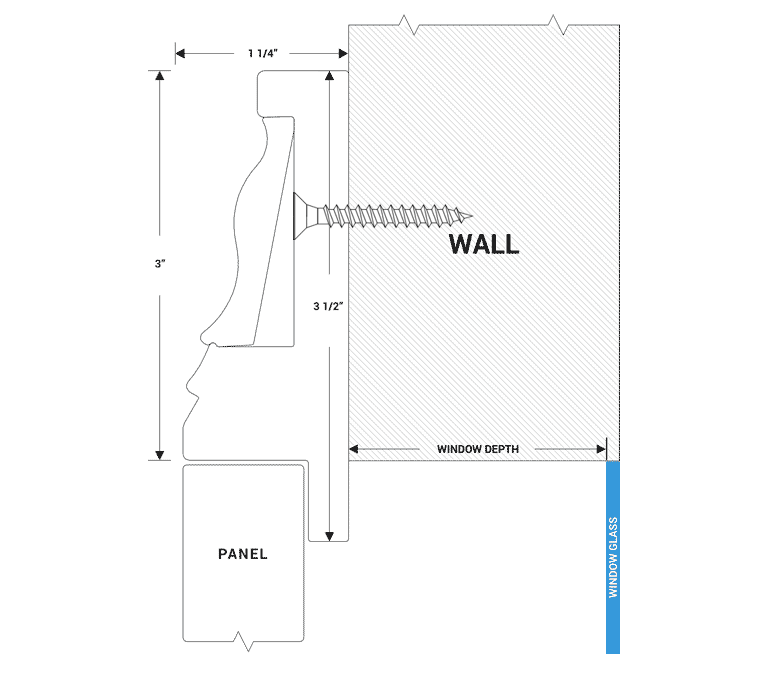

Frame has a unique insert section that snaps in to cover nail or screw holes. No filling of holes needed. When ordering an outside mount shutter you need to add overlap to your window opening to mount your shutter. For the 3" Decorative Frame the recommended overlap is 3" per side. Example if your opening is 30" W x 40" H we recommend ordering your shutter 36" W x 46" H. Do not add overlap to the bottom if you have a window sill that your shutter will rest on. Note: Arched shutter frames will be made as a solid frame not with an insert section. Available outside mount only.

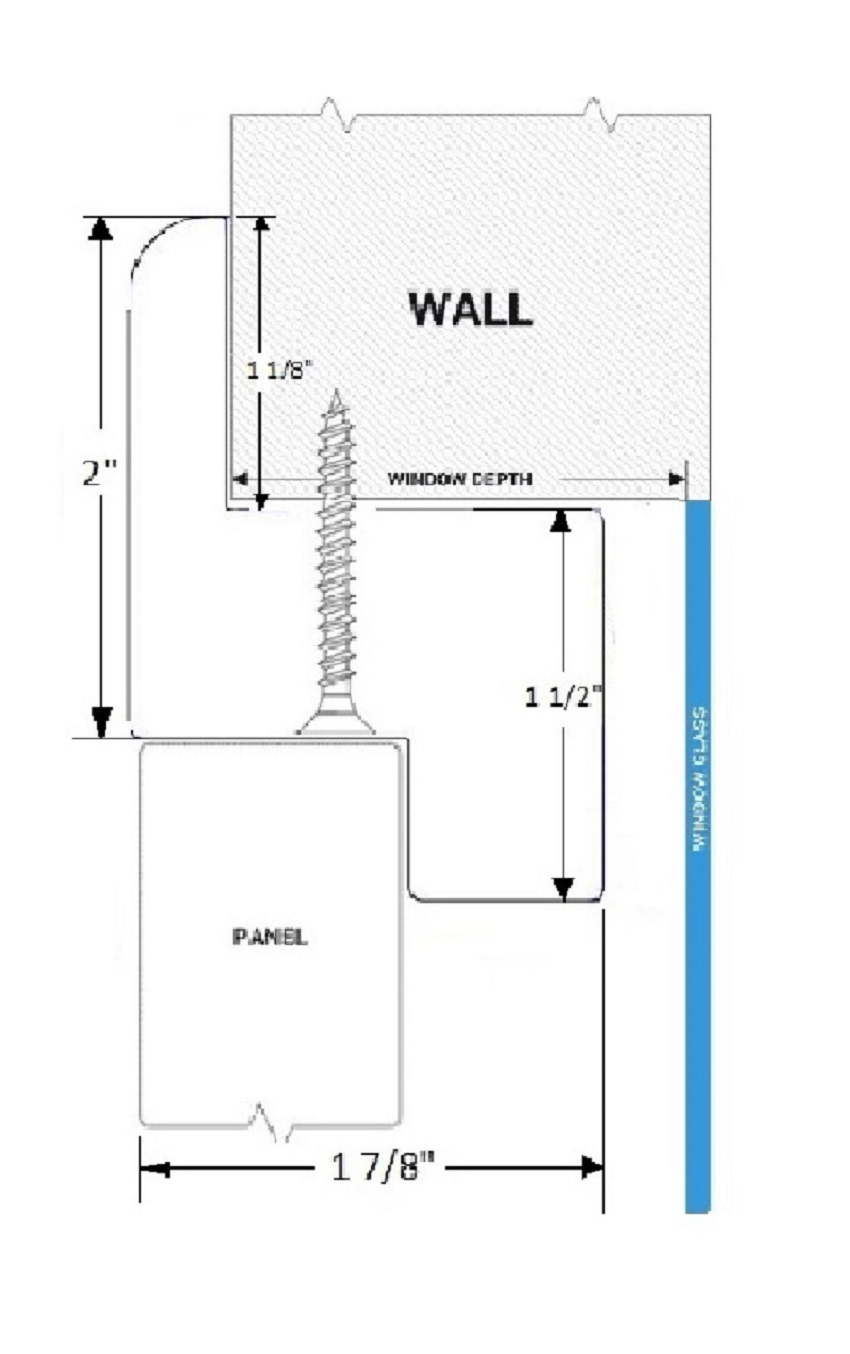

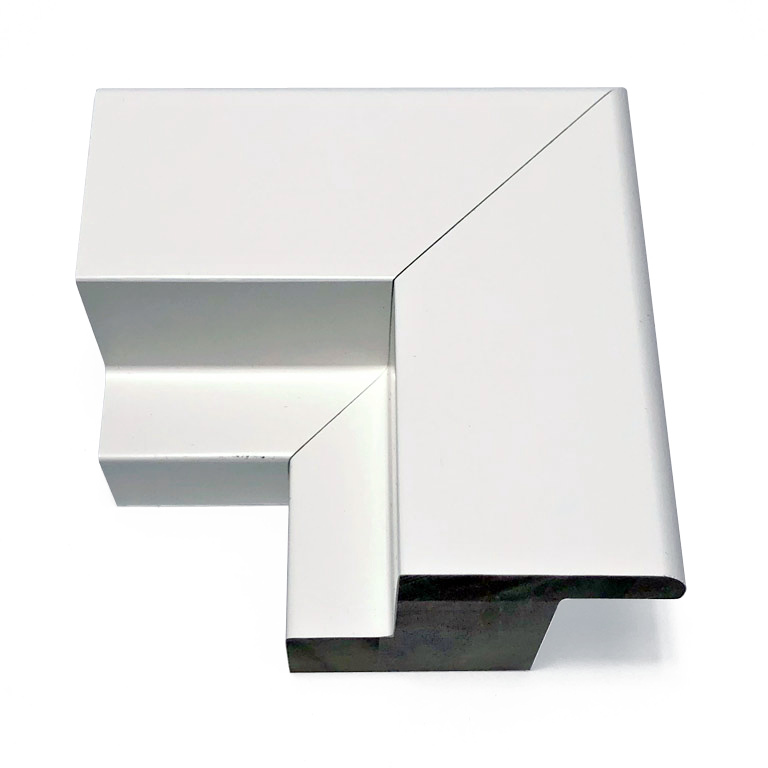

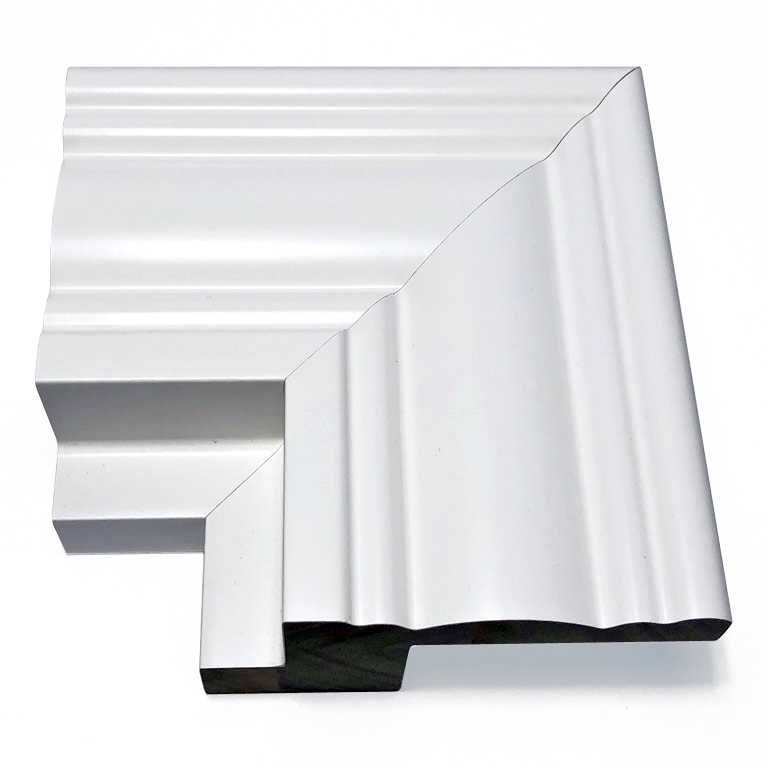

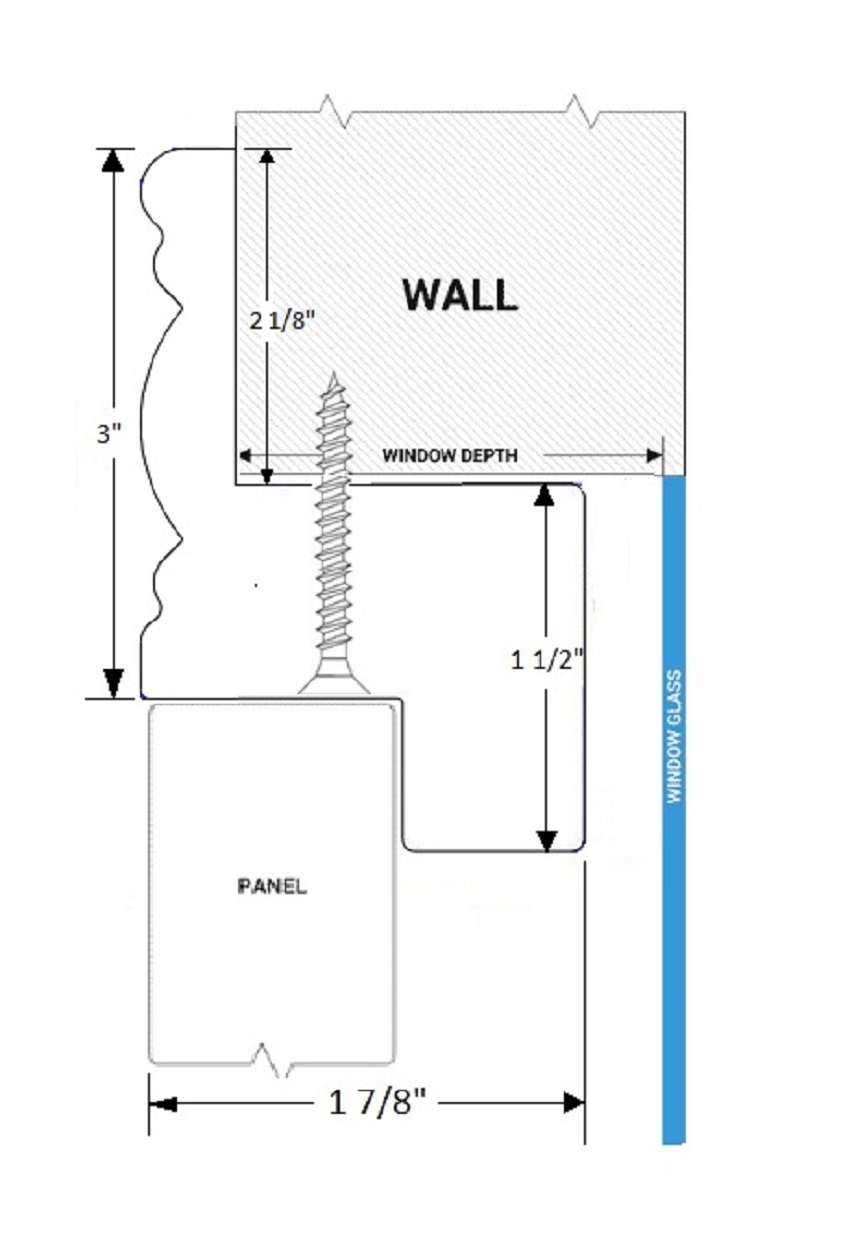

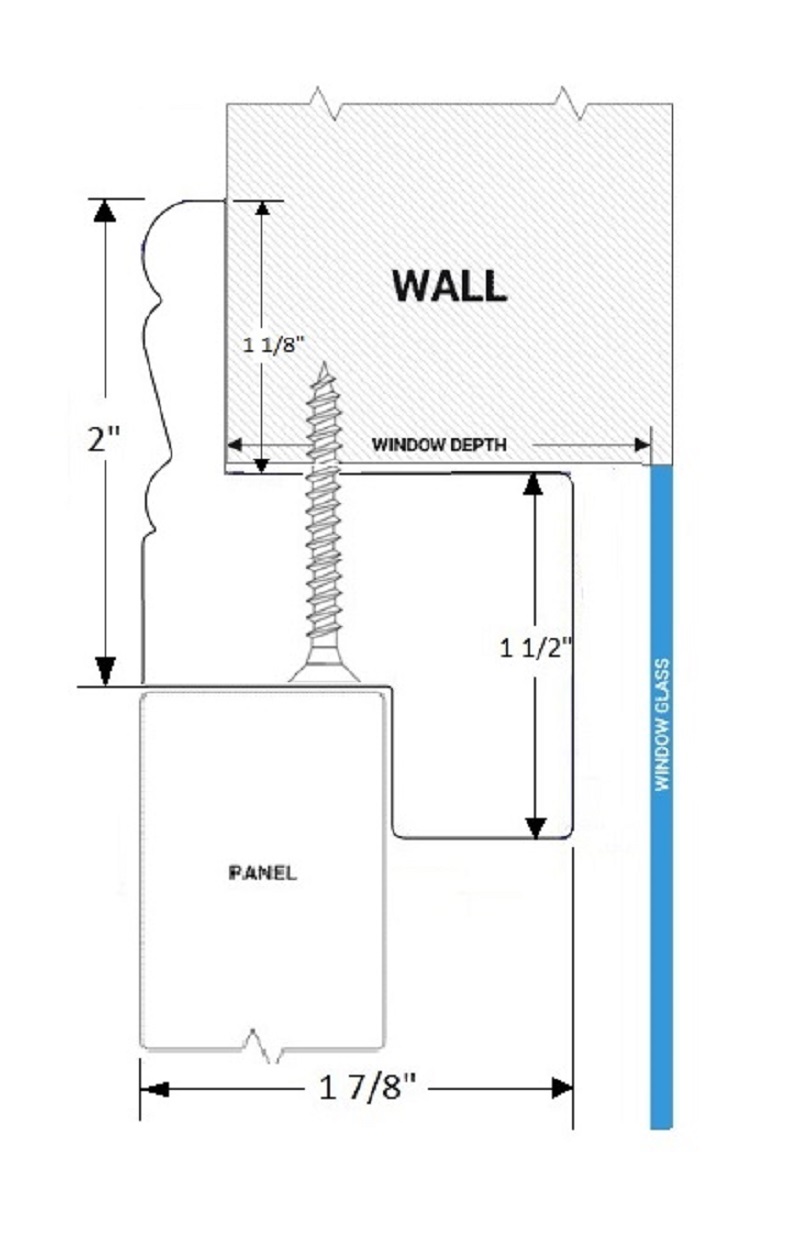

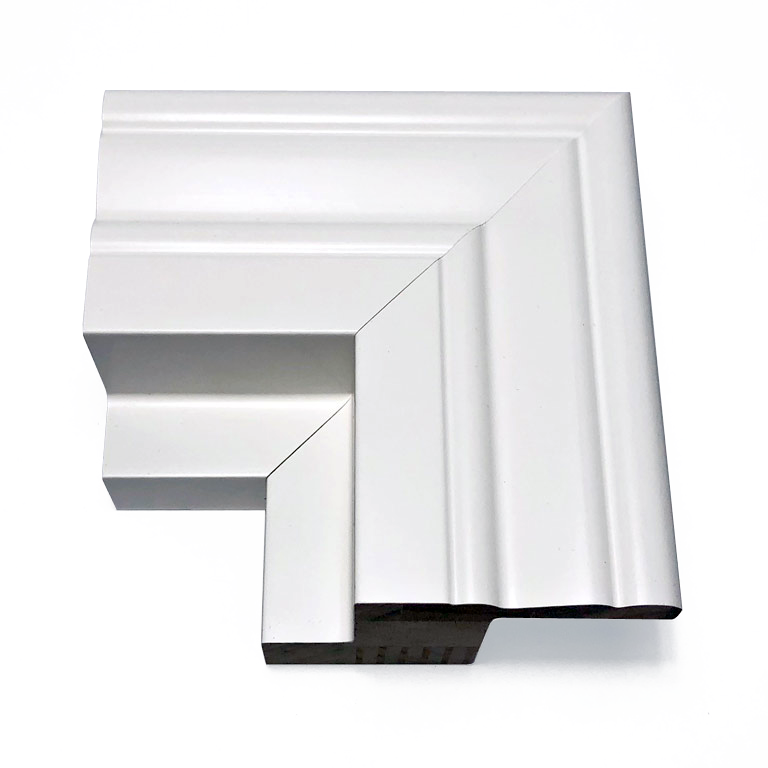

Z-Frames shutters are mounted inside the window opening with a lip that sits over the edge on the wall creating a trimmed out look and eliminating any gaps or imperfections. The amount the lip will extend past the window opening is shown in the drawing below, this is not included in the size you enter. The size you enter will be the size of the frame that goes inside the window opening including suggested deductions for clearance. When Ordering you will need to take a deduction to allow your shutter to fit inside your opening. We suggest 1/4" minimum for proper clearance. You must include this deduction in the width & height you order your shutter at. Example if your opening is 30" W x 40" H you would need to order no larger than 29 3/4" W x 39 3/4" H. More of a deduction may be needed depending on the squareness of your window.

Z-Frames shutters are mounted inside the window opening with a lip that sits over the edge on the wall creating a trimmed out look and eliminating any gaps or imperfections. The amount the lip will extend past the window opening is shown in the drawing below, this is not included in the size you enter. The size you enter will be the size of the frame that goes inside the window opening including suggested deductions for clearance. When Ordering you will need to take a deduction to allow your shutter to fit inside your opening. We suggest 1/4" minimum for proper clearance. You must include this deduction in the width & height you order your shutter at. Example if your opening is 30" W x 40" H you would need to order no larger than 29 3/4" W x 39 3/4" H. More of a deduction may be needed depending on the squareness of your window.

Z-Frames shutters are mounted inside the window opening with a lip that sits over the edge on the wall creating a trimmed out look and eliminating any gaps or imperfections. The amount the lip will extend past the window opening is shown in the drawing below, this is not included in the size you enter. The size you enter will be the size of the frame that goes inside the window opening including suggested deductions for clearance. When Ordering you will need to take a deduction to allow your shutter to fit inside your opening. We suggest 1/4" minimum for proper clearance. You must include this deduction in the width & height you order your shutter at. Example if your opening is 30" W x 40" H you would need to order no larger than 29 3/4" W x 39 3/4" H. More of a deduction may be needed depending on the squareness of your window.

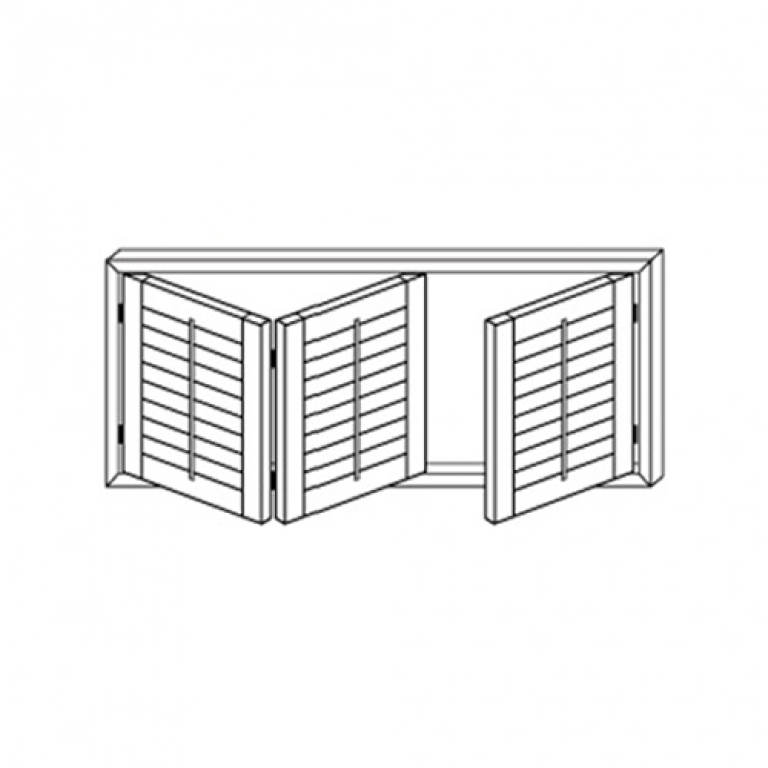

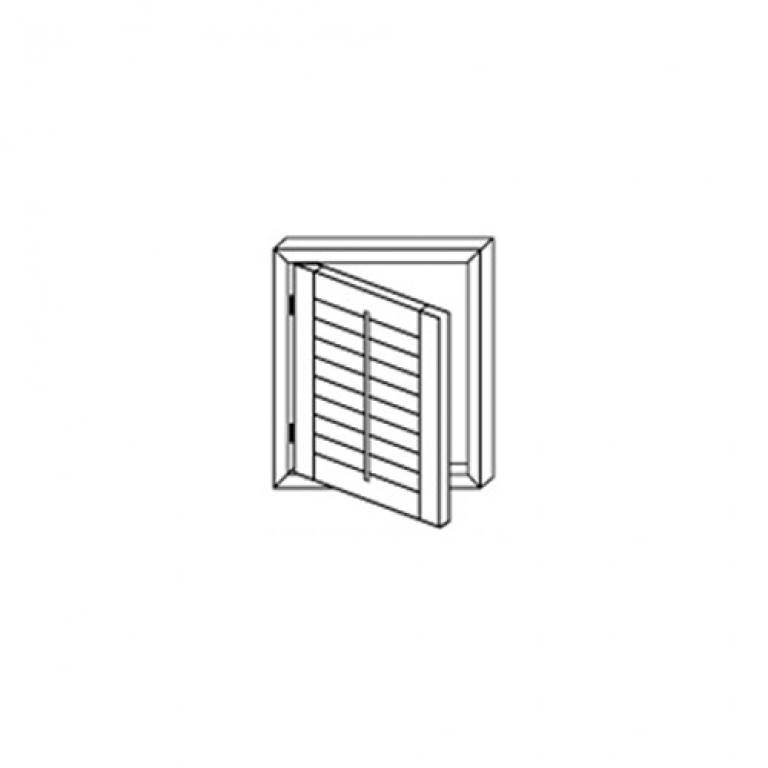

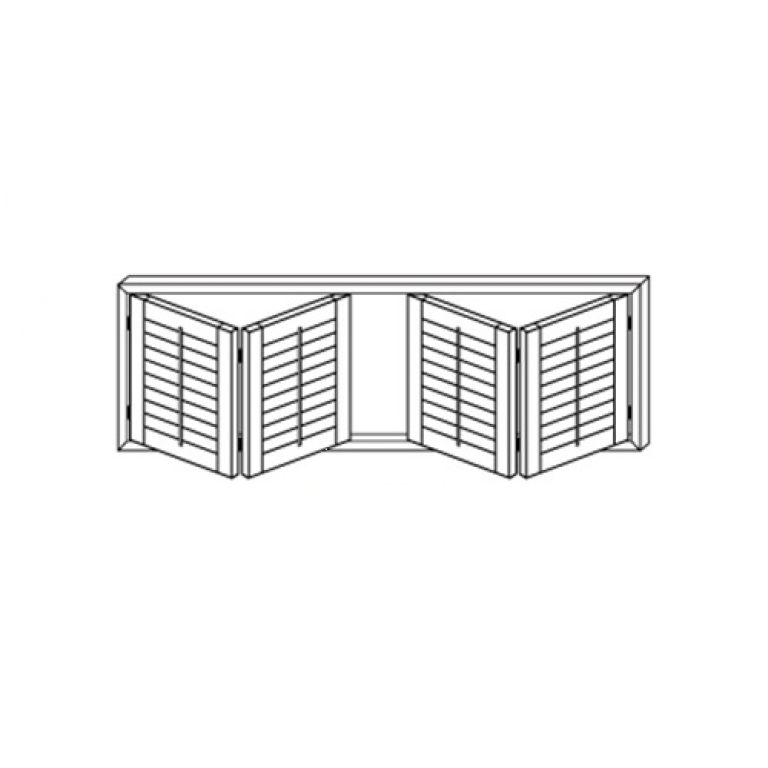

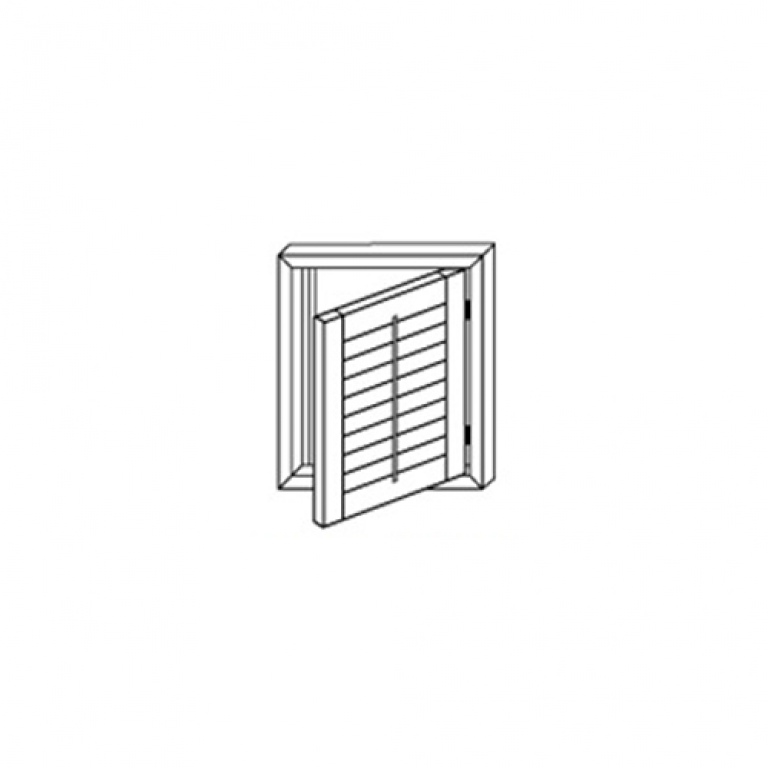

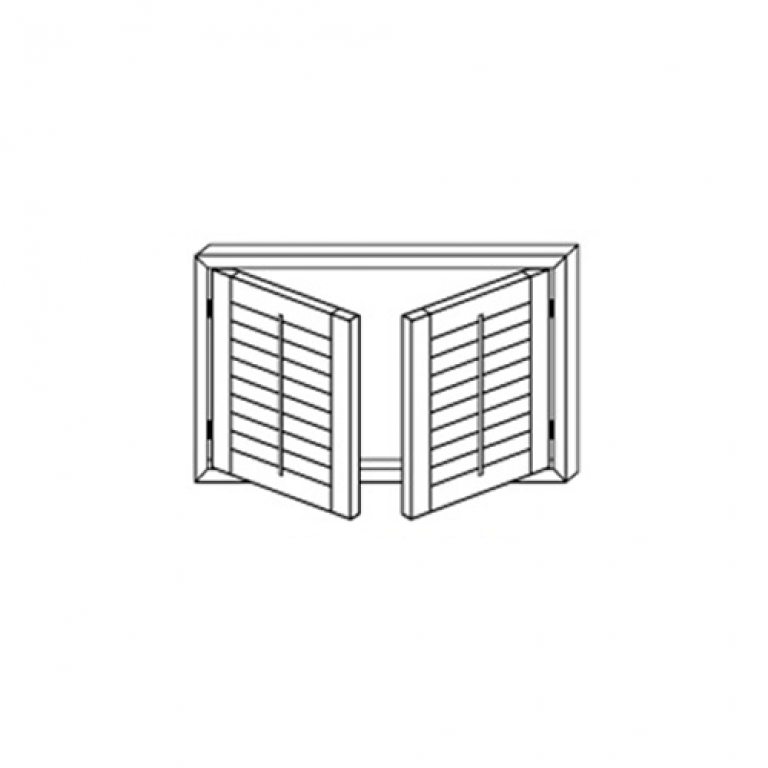

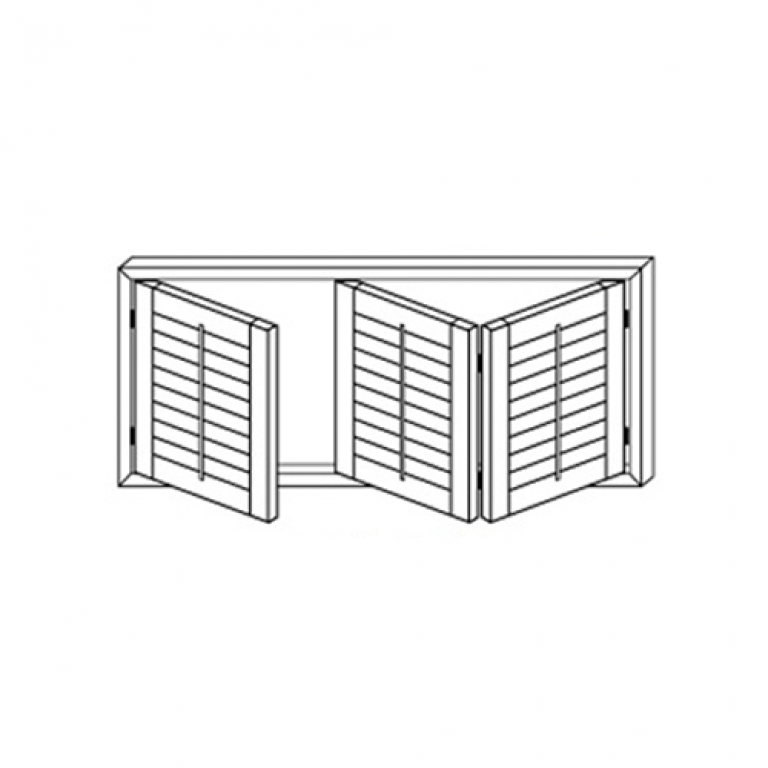

Shutter panels only, no frame. The size you enter will be the finished size of your panel(s). In the next step, please select the number of panels you want for this opening. Example: in Step 1, if you entered your overall size as 24" wide, you may pick one panel which would be 24" wide and hinged on the left or on the right. Or you may select 2 panels, one left, one right, and each panel will be approximately 12" wide. The number of panels you may select is determined by the overall size you entered in Step 1. Hinges will be included.

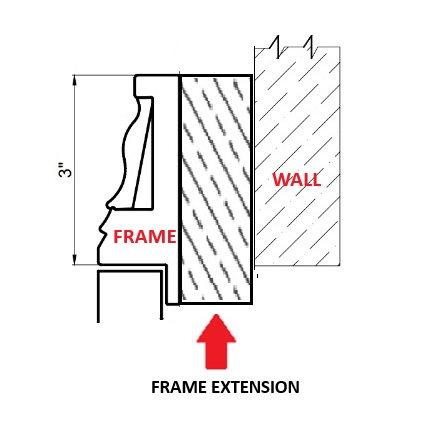

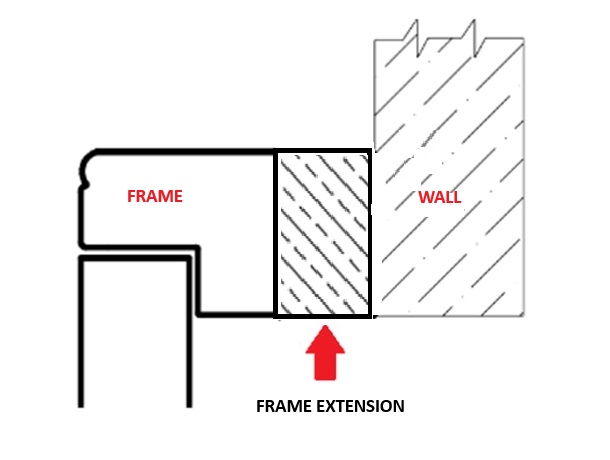

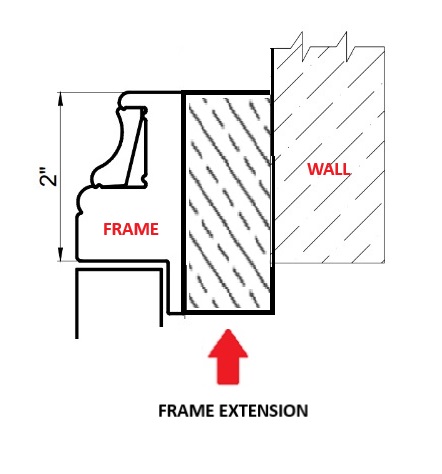

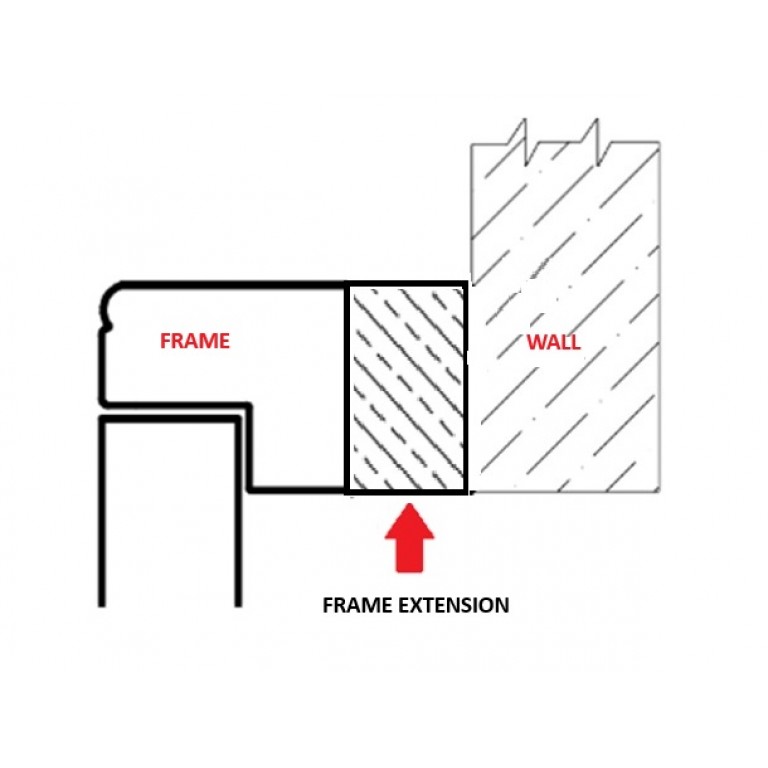

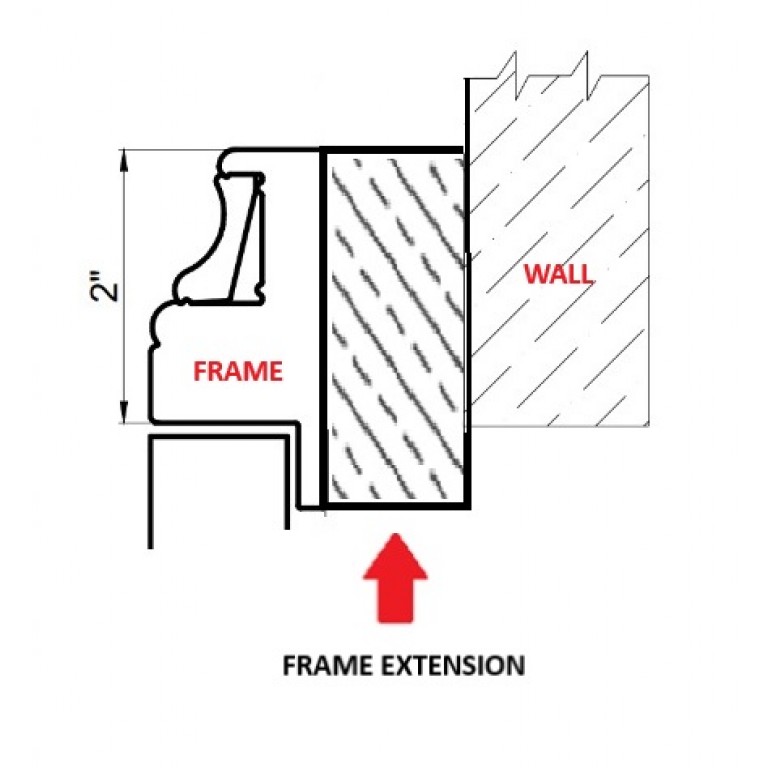

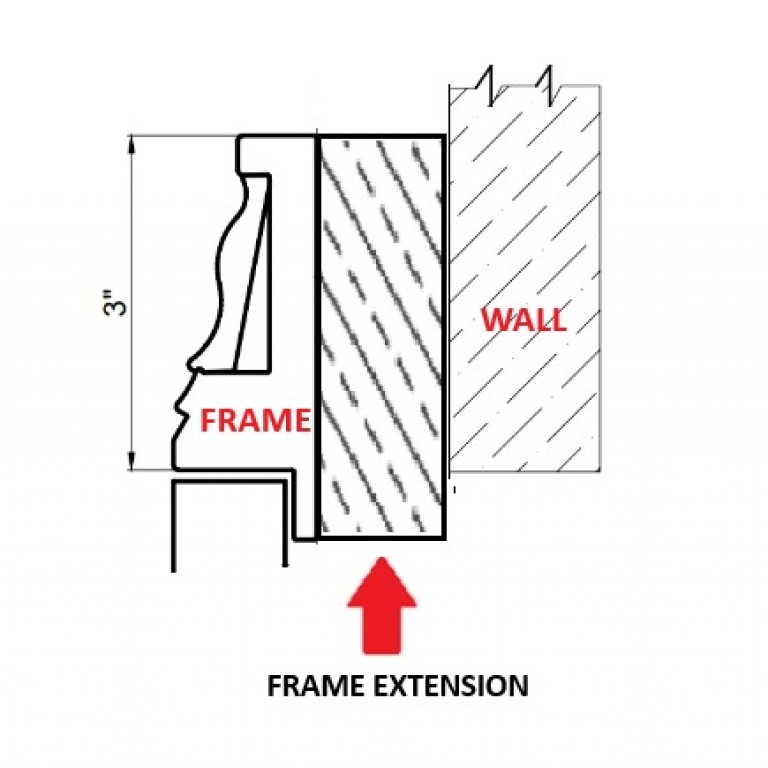

Available on L-frame and Decorative frames, outside mount only: If your window does not have the needed depth for the shutter you want to order you can add extension frame. The extension will be the same material and color as the shutter. It will project the shutter off of the wall adding additional depth for the louvers to open without hitting the window. You can choose from 1/8" thick up to 1 7/8" thick. *See specifications tab at the top of this page for depth needed depending on the frame and louver size you want to order.

Available on L-frame and Decorative frames, outside mount only: If your window does not have the needed depth for the shutter you want to order you can add extension frame. The extension will be the same material and color as the shutter. It will project the shutter off of the wall adding additional depth for the louvers to open without hitting the window. You can choose from 1/8" thick up to 1 7/8" thick. *See specifications tab at the top of this page for depth needed depending on the frame and louver size you want to order.

Available on L-frame and Decorative frames, outside mount only: If your window does not have the needed depth for the shutter you want to order you can add extension frame. The extension will be the same material and color as the shutter. It will project the shutter off of the wall adding additional depth for the louvers to open without hitting the window. You can choose from 1/8" thick up to 1 7/8" thick. *See specifications tab at the top of this page for depth needed depending on the frame and louver size you want to order.

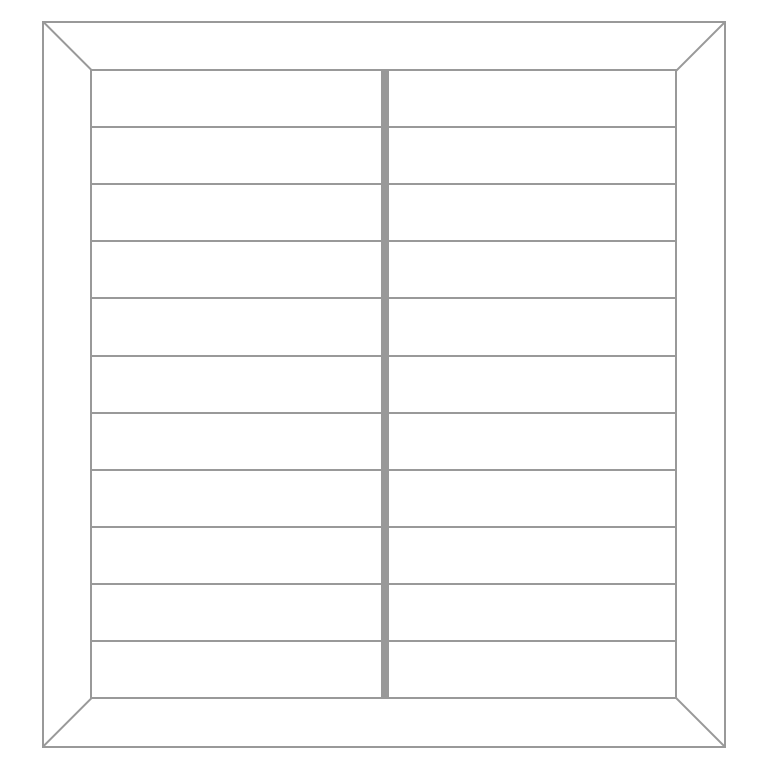

Shutter will have a frame around all four sides.

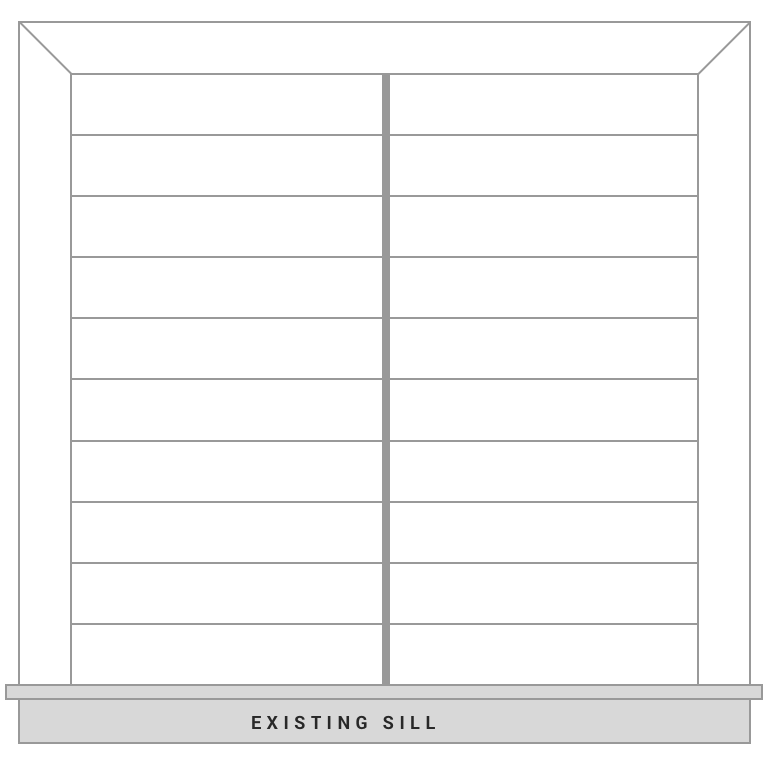

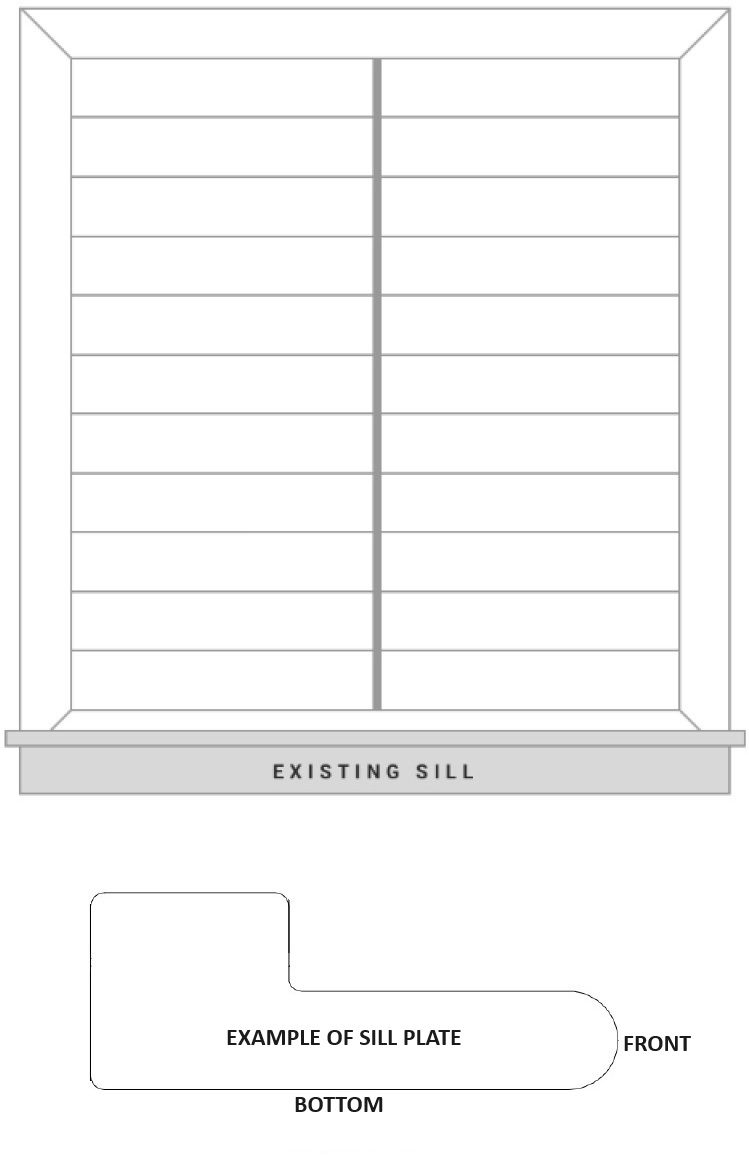

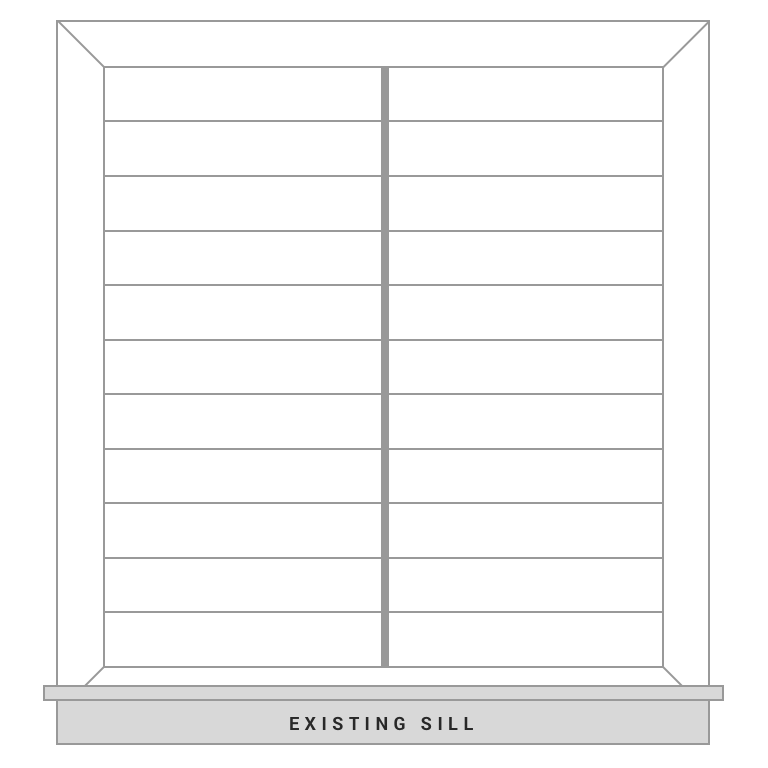

Selected frame on top, left & right with a sill plate on bottom to sit flush on top of an existing window sill.

Selected frame on the top, left and right side only.

No frame is included, hinges will be provided.
